Pull the trigger on an electric gel blaster and a stream of gel balls leaves the barrel faster than you can count. It looks like magic, but inside the shell is a neat little system of a battery, a motor, a gearbox and a spring that has more in common with a power tool than with a water pistol. Understanding it makes you a better player and a much better troubleshooter.
This guide from LKZJ follows a single gel ball from the magazine to the target and explains what each part does along the way, in plain English, no engineering degree required.

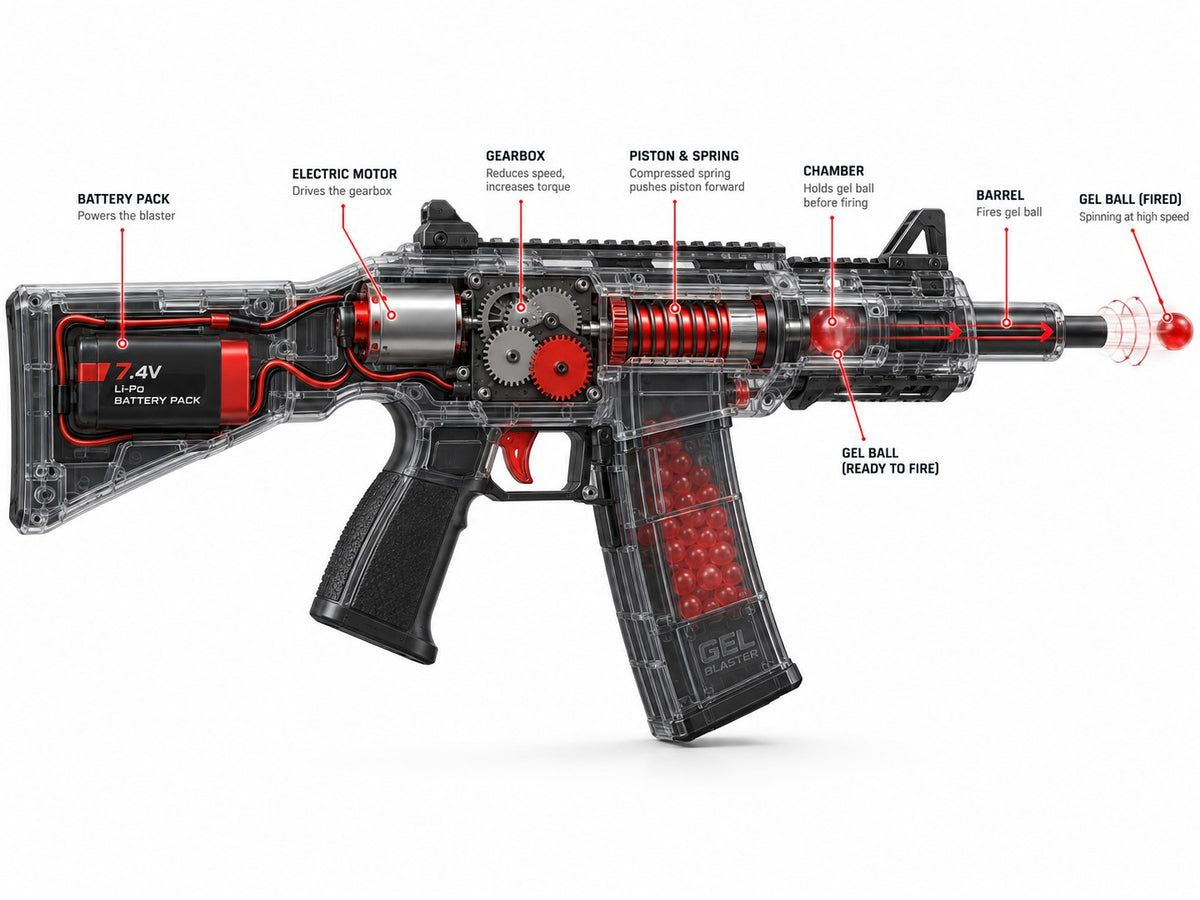

Quick answer: In an electric gel blaster the trigger closes a circuit, the battery spins a motor, the motor turns a set of gears that pull back a spring-loaded piston, and the spring snaps the piston forward to push a blast of air through the barrel. That air launches a gel ball that was fed into the chamber from the magazine. A small rubber bump called the hop-up adds backspin so the ball flies flat and far.
Step 1: The Gel Ball
Everything starts with the ammo. Gel balls are superabsorbent polymer beads that soak in water for about four hours and swell to 7–8 mm. Once hydrated they are soft, slightly bouncy and heavy enough to fly well, but they burst on impact and dry away. Correct hydration is the single biggest factor in how well a blaster feeds and shoots; under-soaked balls jam and over-soaked balls break in the magazine. Our gel ball guide covers the details.
Step 2: The Magazine
The magazine stores the gel balls and pushes them up toward the blaster one at a time. Stick magazines use a spring-loaded follower, like a real firearm magazine. Drum magazines, found on blasters like the HD761 M416, hold far more balls and often have their own small motor or spring-wound feeder that keeps the balls flowing under full-auto fire. When a blaster "runs dry" while there is still ammo inside, the feeder is usually the culprit.
Step 3: The Trigger and Battery
Unlike a spring blaster, where the trigger releases something you cocked by hand, the trigger on an electric blaster is essentially a switch. Pull it and the battery sends current to the motor. Hold it and the motor keeps cycling for full-auto; tap it for single shots on semi-auto. The battery is a rechargeable lithium pack that charges over USB; every LKZJ blaster ships with one. Because the battery does all the work, a tired battery shows up as a slower rate of fire and weaker shots long before it dies completely. See our battery guide for charging and care.
Step 4: The Motor and Gearbox
This is the heart of the blaster. The motor spins very fast but with little force, so a set of gears steps that speed down and multiplies the torque. The final gear is a sector gear: a wheel with teeth on only part of its edge. As it turns, its teeth grab a rack on the piston and pull the piston backward, compressing the main spring. When the teeth run out, the piston is released and the spring fires it forward.
Entry-level blasters use polymer gears; higher-end models like the SJ81-2 M4 use metal gearboxes that stay tighter and last longer under heavy use. If you ever hear a blaster whir without firing, the gears are turning but the piston is not catching, a classic sign of a stripped gear or piston rack.
Step 5: The Piston, Cylinder and Spring
The piston slides inside a cylinder. When the spring drives it forward, the air in front of it has only one place to go: through a small nozzle and into the barrel behind the gel ball. Think of a bicycle pump with the outlet aimed at a pea. The stiffness of the spring and the seal of the piston head set the velocity, usually somewhere in the 150–250 feet-per-second range for backyard blasters. Stronger springs mean more speed but also more strain on the gears and battery, which is why upgrades should be balanced; see our upgrade guide.
Step 6: The Nozzle and Feed Timing
As the piston moves back, a nozzle at the front of the gearbox slides back too, opening a gap that lets one gel ball drop from the magazine into the chamber. As the piston fires forward, the nozzle closes, seals against the ball and directs the air behind it. This timing is why gel balls must be the right size: too small and two try to feed at once (a double-feed jam); too big and the ball will not drop at all.
Step 7: The Hop-Up
Just past the chamber sits a small rubber bump or ring that protrudes slightly into the top of the barrel. As the gel ball rushes past, the bump drags on its top surface and gives it backspin. Backspin creates lift, so the ball flies flatter and farther instead of dropping in an arc. Some blasters have an adjustable hop-up; if yours shoots consistently high or low, this is the thing to adjust. It is also the reason gel balls must be round and firm; a mushy ball simply tears on the hop-up.
Step 8: The Barrel
The barrel guides the ball while the air keeps pushing it. A longer, smoother barrel gives the ball more time to stabilize, which is one reason sniper-style blasters like the HD823 Barrett M82A1 tend to be the most consistent at distance. Keep the barrel clean and dry; a stray burst gel ball inside it will spray the next few shots everywhere.
Electric vs Spring vs Gas: The Other Designs
- Electric (AEG-style): the system described above. Semi and full-auto, rechargeable, by far the most common. Every blaster in the LKZJ range is electric.
- Spring (manual): you cock the piston by hand for every shot. Simple and cheap, but slow.
- Gas blowback: uses compressed gas instead of a piston. Realistic recoil, but expensive to run and rare in the US gel market.
Why This Matters When Something Goes Wrong
| Symptom | Likely part | First thing to try |
|---|---|---|
| Motor whirs, no shot | Piston / gears not engaging | Check for a stripped piston rack; stop using until repaired |
| Weak, slow shots | Battery | Charge fully; replace if it fades fast |
| Fires but no ball comes out | Magazine feed or nozzle | Check ball size and soak time; clear the feed tube |
| Balls spray in all directions | Barrel / hop-up | Clean burst gel from the barrel; check ball firmness |
| Double feeds / jams | Undersized balls | Soak longer; sift out small balls |
Our maintenance and troubleshooting guide goes deeper on each fix.
Frequently Asked Questions
How fast does the gearbox cycle?
Typical backyard blasters fire roughly 8–12 balls per second on full-auto, depending on the battery and gearing.
Does a bigger battery make the blaster shoot harder?
No. The spring sets the velocity; a higher-voltage battery only cycles the gearbox faster. It also puts more strain on polymer gears, so stick to the battery your blaster was designed for.
What is a "gearbox" made of on a budget blaster?
Usually reinforced nylon gears in a polymer shell, which is perfectly adequate for normal play. Metal gears are an upgrade for heavy use or stronger springs.
Why does my blaster shoot better with some gel balls than others?
Ball size, roundness and firmness all affect feeding, the hop-up and the air seal. Consistent, properly hydrated balls are the cheapest accuracy upgrade there is.
Now You Know What Is Inside
Battery to motor, gears to piston, air to gel ball, hop-up to target. Once you can picture that chain, most problems explain themselves and every upgrade makes sense. Ready to see it in action? Browse the full LKZJ gel blaster collection and pick your first electric blaster.
